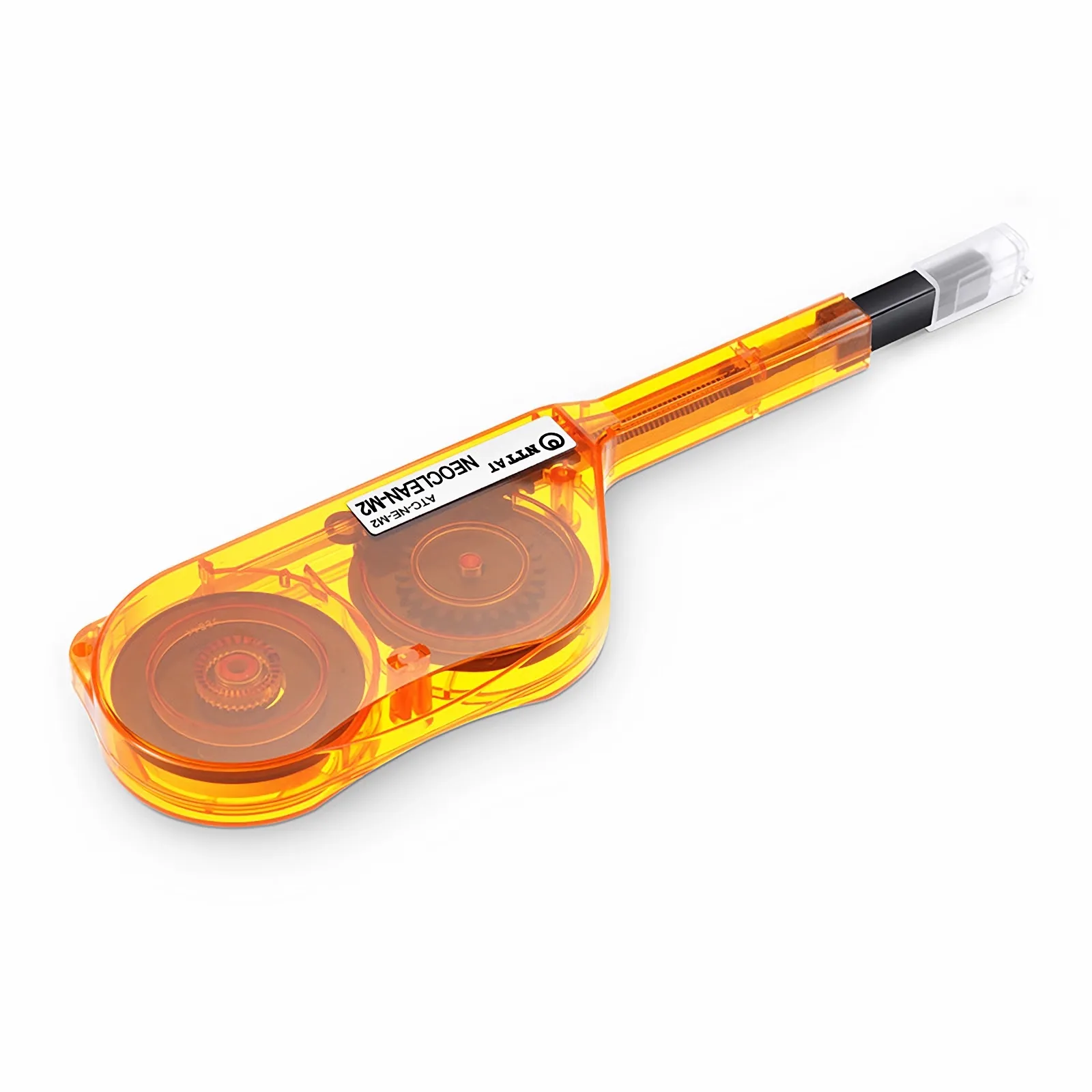

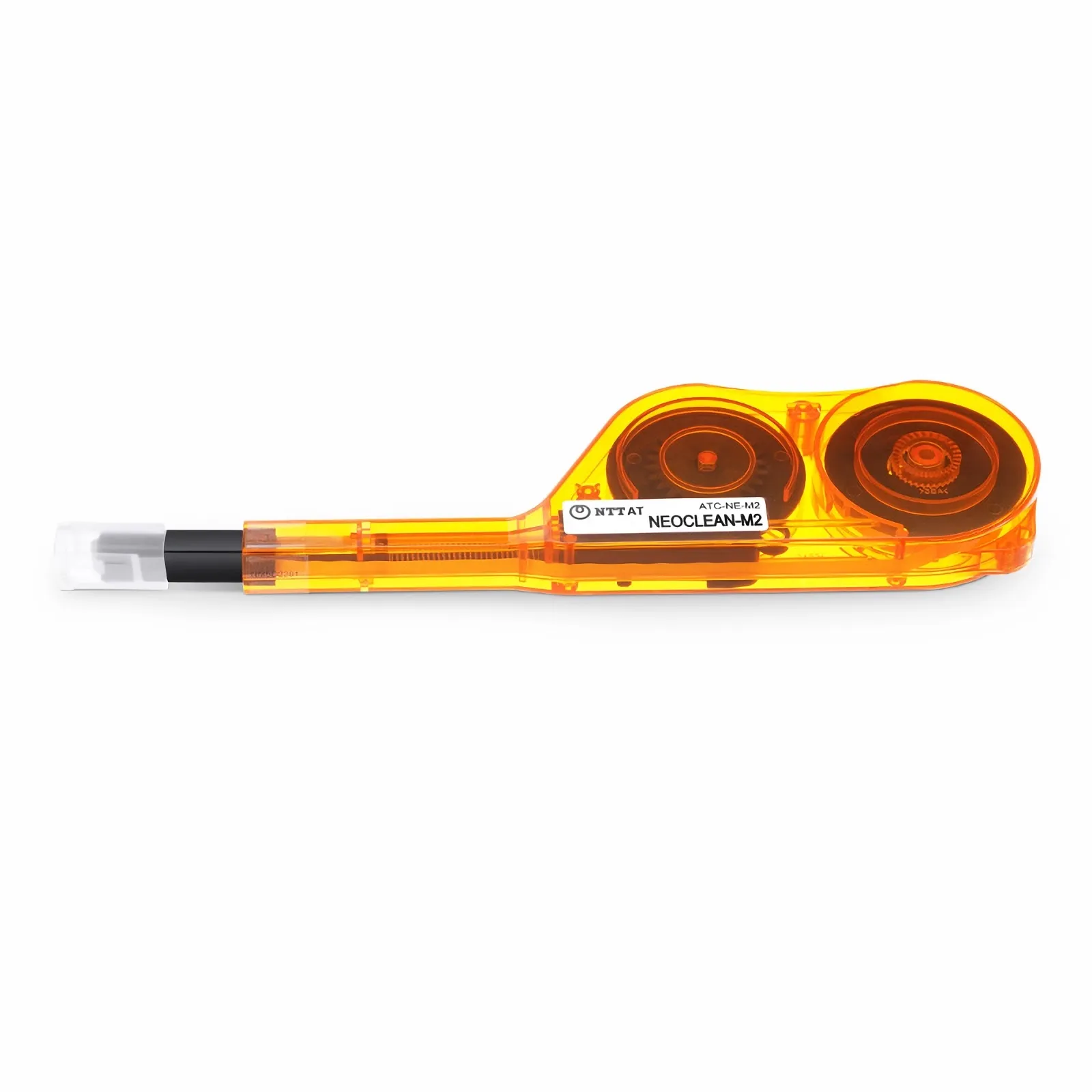

NEOCLEAN-M2 One-Push Pen Cleaner, for MTP/MPO-16 Connectors

NEOCLEAN-M2 One-Push Pen Cleaner, for MTP/MPO-16 Connectors - Image 2

NEOCLEAN-M2 One-Push Pen Cleaner, for MTP/MPO-16 Connectors - Image 3

NEOCLEAN-M2 One-Push Pen Cleaner, for MTP/MPO-16 Connectors - Image 4

NEOCLEAN-M2 One-Push Pen Cleaner, for MTP/MPO-16 Connectors - Image 5

NEOCLEAN-M2 One-Push Pen Cleaner, for MTP/MPO-16 Connectors

RM300.00

Fiber Connector Click Cleaner (MPO-16)
Model: NEOCLEAN-M2

Designed for MPO-16 / MTP-16 connector cleaning
Applicable Connector: MTP / MPO 16, 16×2
Size: 204(L) × 15(W) × 51(H) mm
Cleaning Capacity: Up to 600 times
Dry cleaning method without alcohol
Cleans 16 fibres in one operation

Categories: Fiber Cleaning Tools, Fiber Installation Tools Brand: NTT-AT

Details

Features

One-push operation with no special skills required

The specially designed microfibers remove contaminants by an easy push operation without damaging the delicate optical fiber core.

Compact design with workability in mind

Brings you the possibility of over 600 cleanings in a very portable compact design that excels in workability.

Compatibility for both plugs and adaptors in one unit

In addition of optical port adaptors, attaching the cap (included) allows you to also easily clean plugs too.

Complies with RoHS Directives

Overview

Many troubles in optical communications equipment are caused by contamination on the optical connector end face.

NEOCLEAN-M, the MPO/MTP connector cleaner, employs microfibers designed specifically for optical connectors to remove even the smallest contamination not visible to the naked eye. Please take advantage of the improvements you will receive in optical construction working efficiency and in communication services reliability.

Specifications

Product Name	NEOCLEAN-M
Model	ATC-NE-M2
Compatible Connectors	MPO connector MTP® connector
Compatible End Face	Flat and 8 degree slant (compatible with or without guide pins)
Size(mm)	Main Body:197L×15W×51H?With Cap Attached:208L×17W×51H
Standard Usages	Over 600 times

More Information

Manufacturer	NTT-AT
Manufacturer Part Number	ATC-NE-M2
Product Series	NTT-AT NEOCLEAN-M Series
Product Type	Pen Type / One-Click / IBC Connector Cleaners
Size / Operation	Handheld, Pocket-sized
Connector Interface	MPO/MTP
Industry	Installers and Contractors (OSP), Telecommunications, Campus Networks, Data Centres, Enterprise Networks, Aerospace and Defence, Optical Equipment Manufacturing (OEM), Broadcast, Mining, Off-shore and Remote, Transportation, Utilities
Applications	Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), Long-haul installation, CO (Central Office) LAN and Network, OSP (Out Side Plant), Multi-fiber MPO/MTP Testing, Connector End-face Cleaning, Patchcord Cleaning, Rack Panel / Ferrule Cleaning (Backplane / Bulkhead)
Standard Package Contains	• •
Warranty	1 Year
Warranty Notes	Ettix Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
